Blue Sea Systems

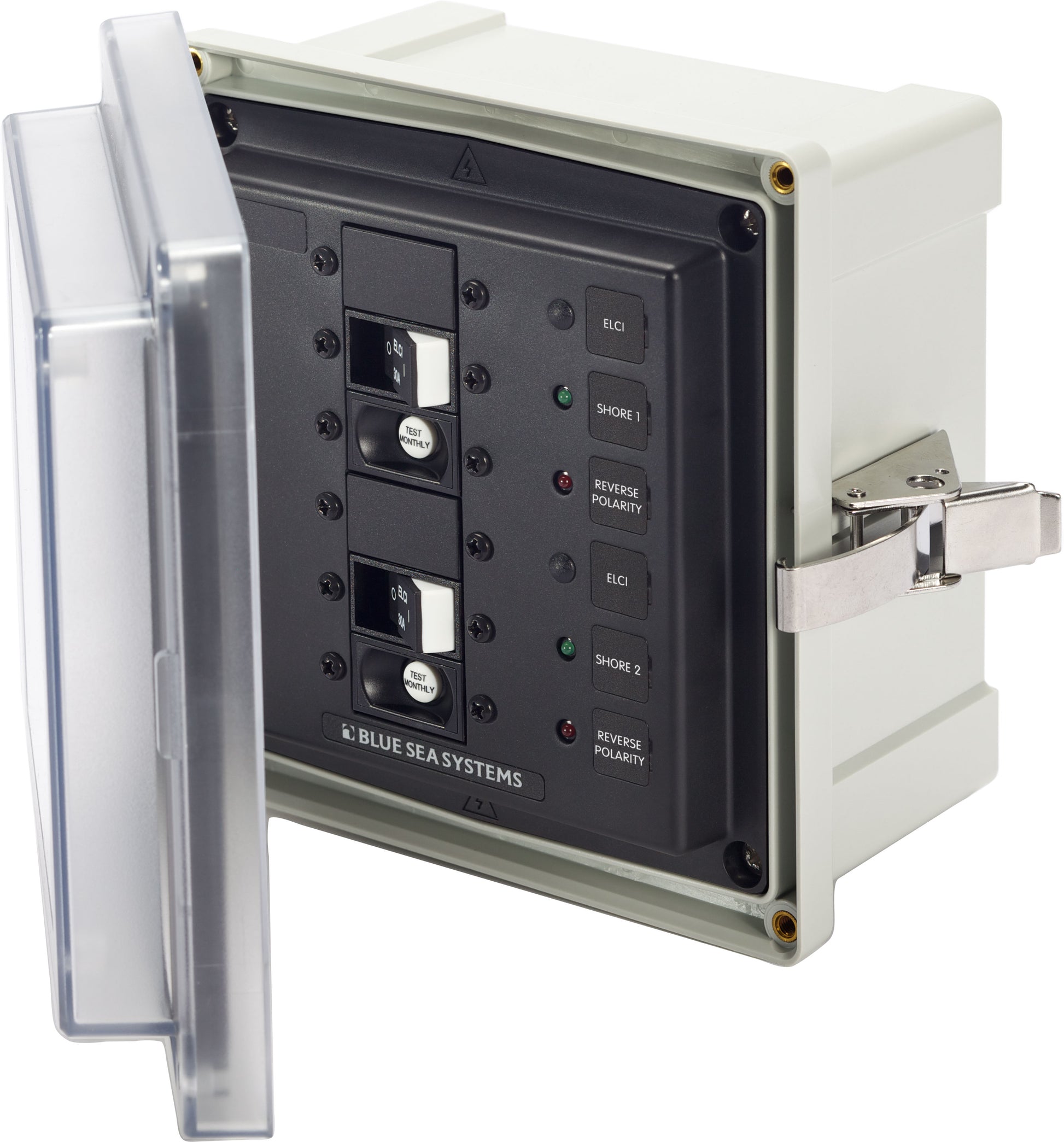

SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main
SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main
Regular price
$795.99
Regular price
$1,089.91
Sale price
$795.99
Unit price
per
Couldn't load pickup availability
Part Number - BSS-3117
-
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
- Includes one Dual 120V AC / 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
| Specifications | |
|---|---|
| Minimum Operating Temperature | -35° C |
| Maximum Operating Temperature | 66° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm) |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm) |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 7.00lb (3.18 kg) |
| Optional Accessories | ||
|---|---|---|
 |
3126 | SMS Enclosure Gland PG29 |
