Blue Sea Systems

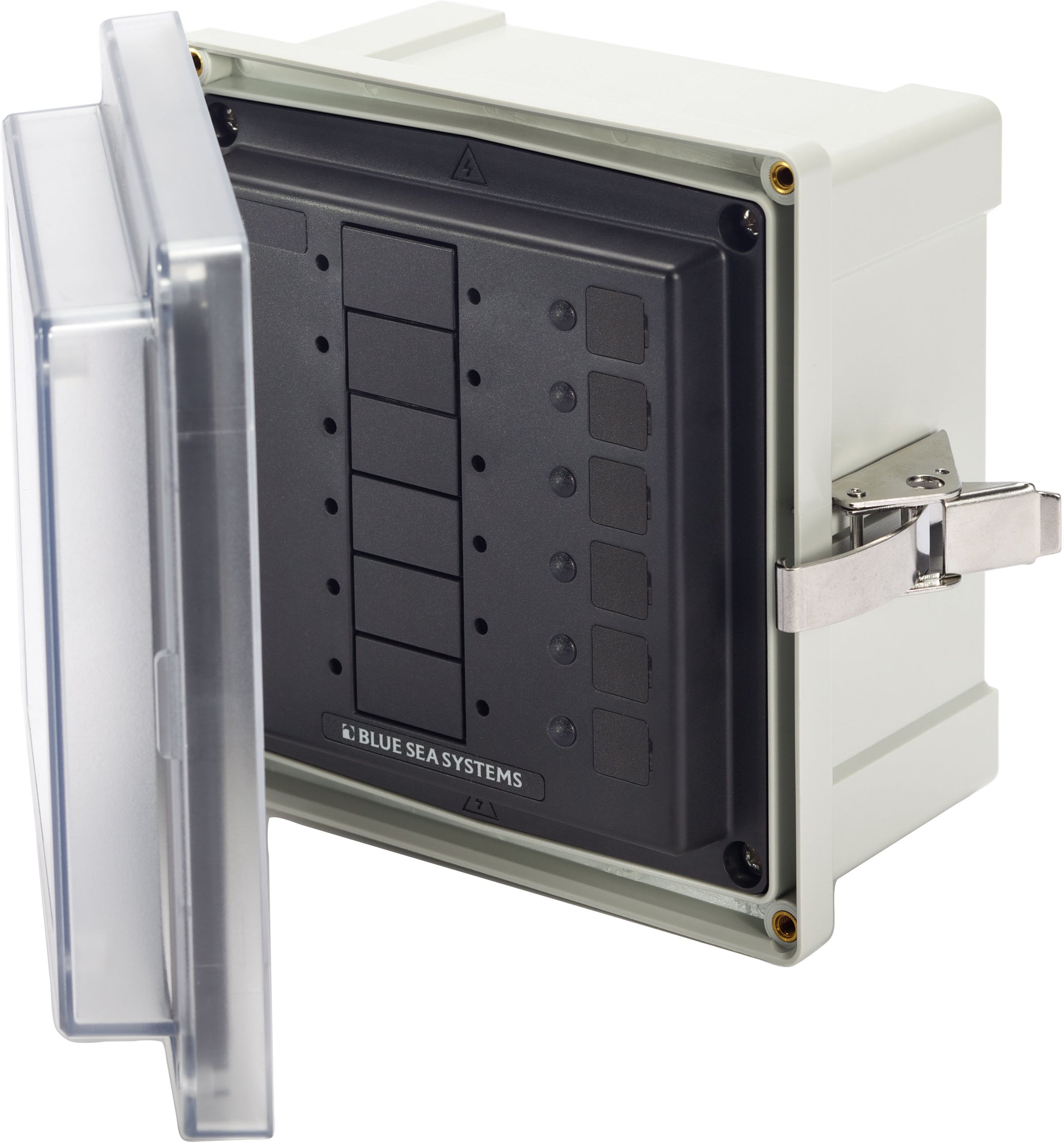

SMS Surface Mount System Panel Enclosure - 6 Circuit Blank
SMS Surface Mount System Panel Enclosure - 6 Circuit Blank
Regular price
$195.99
Regular price
$195.99
Sale price
$195.99
Unit price
per
Couldn't load pickup availability
Part Number - BSS-3113
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
| Specifications | |
|---|---|
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm) |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm) |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 7.00lb (3.18 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 4205 | Basic DC Label Kit - 30 Black Square Labels [LABEL] |
| 1 | 4206 | Basic AC Label Kit - 30 Black Square Labels [LABEL] |
| Optional Accessories | ||
|---|---|---|
 |
3124 | SMS Enclosure Gland - PG7 for #14 to #10 Wire |
 |
3125 | SMS Enclosure Gland PG16 |
 |
3126 | SMS Enclosure Gland PG29 |
